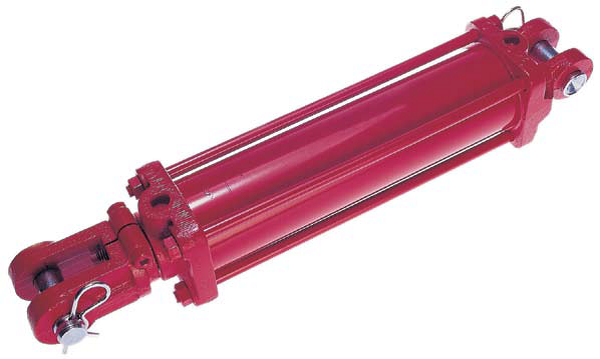

Kalahari Hydraulics stocks a full range of tie-rod cylinders in sizes from 50 mm to 100 mm bore and stroke of up to 1500 mm. However, strokes longer than 1500mm can be manufactured upon customer request. The range has a reputation for reliability in applications such as agriculture, light industry and the mobile market. All standard cylinder sizes are available ex-stock.
Normal Pressure: 210 Bar
Test Pressure : 25 MPa
Hydraulic Fluid : Mineral Oil
Fluid Temp Range: -10 to +80°C
Stroking Speed: up to 1 500mm
Design variations:
Standard:Medium pressure hydraulic cylinder for agricultural, mobile and light industrial applications
With stroke adjuster:Cylinder with stroke adjuster to vary the required retracting stroke of the cylinder e.g. depth control of a planter or plough
With shaft extension:Cylinder with shaft extension to fit between existing mounting clevises of a machine or application.
Re-phasing cylinder:Cylinder with shaft extension to fit between existing mounting clevises of a machine or application.
